Internal Valve Sensor CANbus Platform Receiver Bus Truck TPMS Tire Pressure Monitoring System Max Support 22 Tires
CANbus Platform Receiver Bus Truck TPMS Tire Pressure Monitoring System Max Support 22 Tires with Internal Valve Sensor
The CANBUS Bus Truck TPMS system includes sensors, repeater and CAN receiver. It is used to monitor the pressure and temperature data of the tires. After collecting the pressure and temperature data, the sensors send the data to the repeater and receiver by wireless RF, then the repeater sends the data to the receiver. The receiver sends the data to CAN-BUS network, The instrument or other display devices collect all tire data and display from CAN network. When the pressure or temperature over or under warning valve value, the instrument will warn automatically to remind the users to pay attention to the tire situation.
The CAN bus is the golden standard of onboard network protocols. CAN-bus devices, once considered “professional” tools, are today widely adoptet also by hobbyists and semi-professionals in the motorsport market.
A CAN-bus system affords extensive configurability and fine-grained control in power management, particularly within the domain of fault handling.
CAN receiving uint:
.jpg)
1. Support SJ1939, The data be sent by CAN-bus
2. Support 2~22 tires
3. With the functions of ID learning/ID query/pressure and temperature measurement
4. Send the tires data to instrument or other display device by CAN-bus
Repeater
When far distance and weak signal, can increase the signal strength to make sure the transferred signal reception reliability
Full thread fixing type, adopt IPX6 anti-water testing standard
interior integration RF emit and receive function, high sensitive data receiving

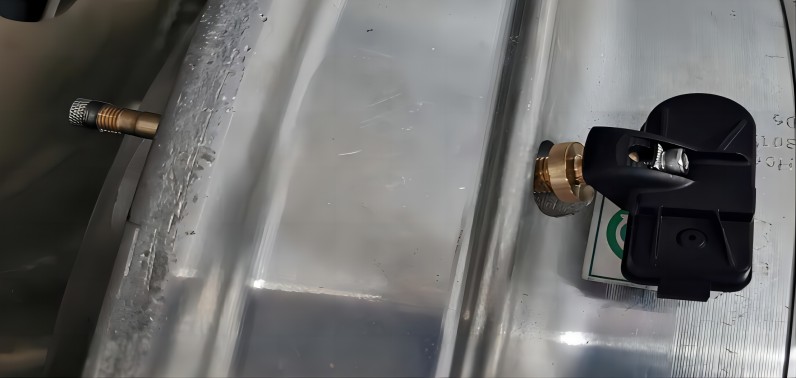

Internal Valve Sensor
***High-frequency transmission mode uses FSK modulation signal, low frequency uses ASK modulation signal
***Fully imported car gauge grade materials, long life, high stability and strong anti-interference ability
***Simultaneous measurement and monitoring of air pressure and temperature, with self-test and tire leakage monitoring
***IP67 protection
***Light weight, Small Size.
***Need a professional sensor installation to perfectly protect your vehicles tyres and guarantee driving safety.
